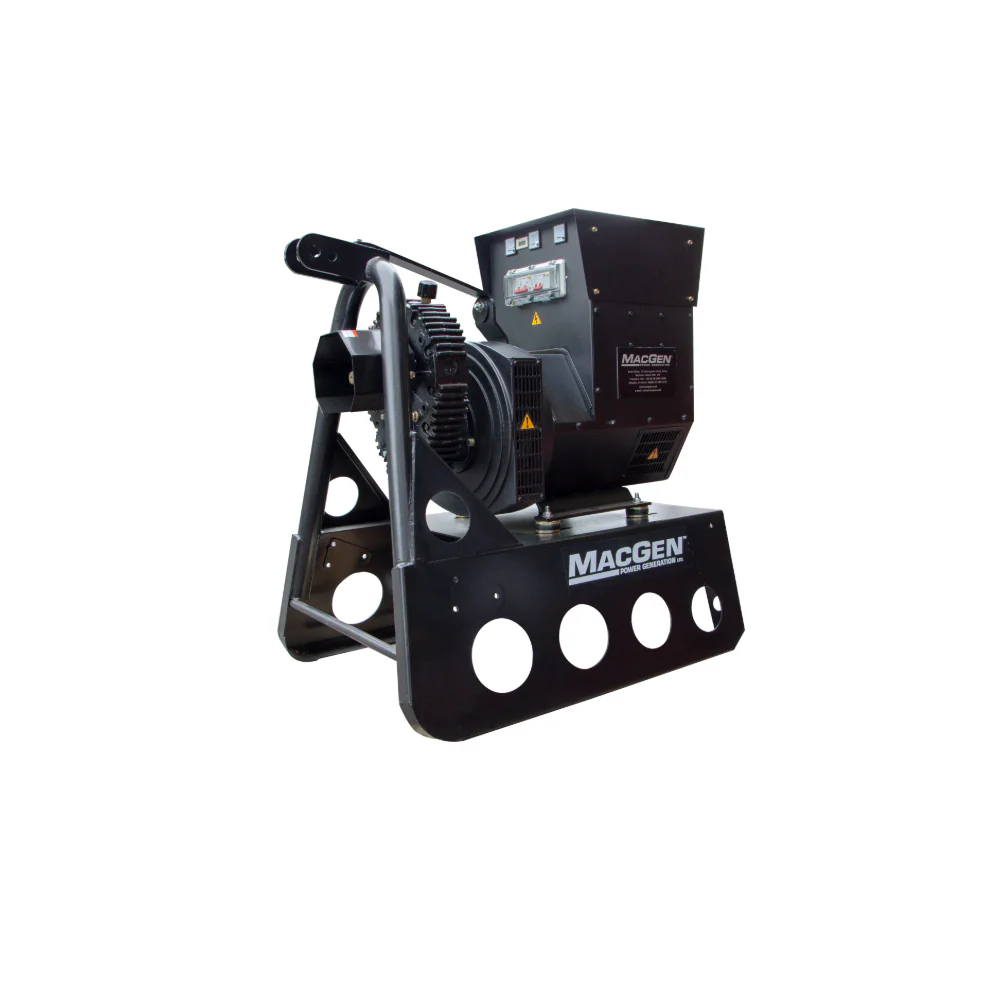

Single Phase PTO MacGen Generator MTR045-1 56kVA

Single Phase PTO MacGen Generator MTR045-1 56kVA

A generator is basically an engine and an alternator. If you have a tractor, you already have a powerful engine ready to be connected to your driveshaft. You’re simply missing the alternator to convert the engine power into electricity. PTO generators are the perfect solution for portable power on or around a farm.

You can operate power tools far from distant utility poles. Plus, you can use a manual transfer switch to restore power to a house, barn or building during an outage. All Macgen PTO generators come as standard with removable 3-point linkage & bolt-down slots for fixed operation.

Specifications:

• Standby Power: 61kVA
• Prime Power: 56kVA
• Rated Output: 45kW.
• Frequency: 50Hz
• Input Speed: 540rpm
• Voltage: 230V
• Socket Config:   1 x 125A / 1 x 32A
• Power factor: 0.8
• Phase: Single

Horsepower required at the P.T.O. of the tractor to achieve full generating power is calculated as follows:

• SINGLE PHASE: kVA x 2 (i.e., 33kVA = 66HP at PTO Shaft)

ALL MACGEN GENERATORS COME COMPLETE WITH PTO SHAFTS & IP67 PLUGS

*Please note the following bulky item is excluded from the 10% off welcome discount*
