JFC Dumpy Tip-Over Drinker (Blue)

JFC Dumpy Tip-Over Drinker (Blue)

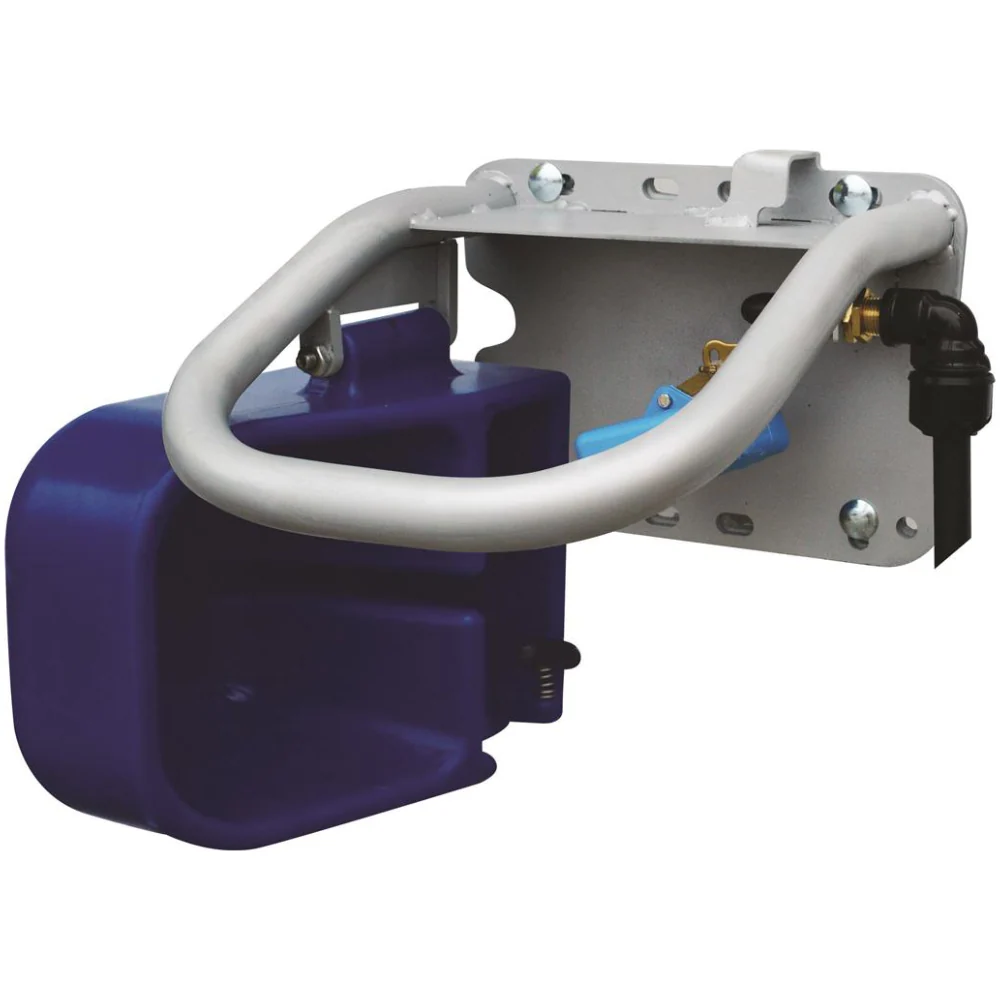

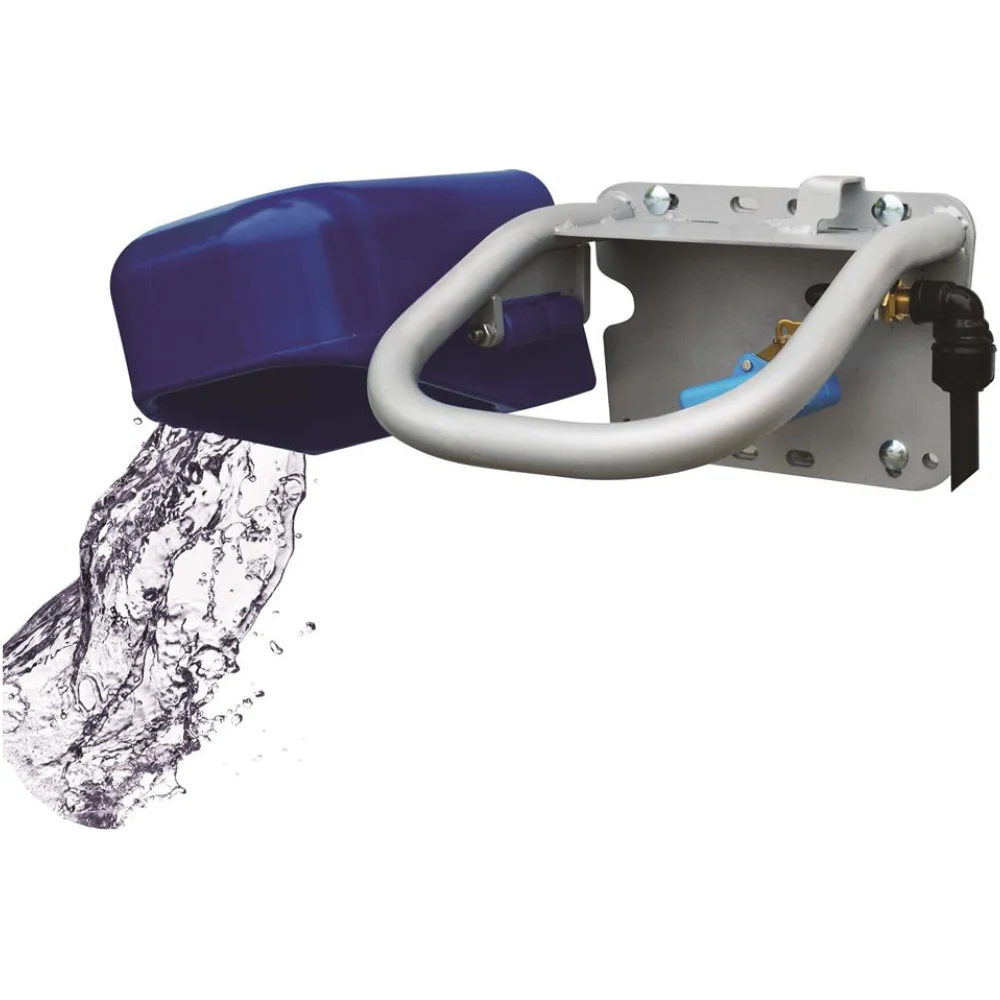

The DBL9 Drink Bowl is a robust, animal-safe solution designed for efficient water management. Manufactured from tough, impact-resistant polyethylene, it features a smooth finish and curved edges. Its twin-wall construction enhances strength and durability, while a galvanised steel protection frame adds further reinforcement. Integrated into the frame is a brass float valve that delivers up to 9L/min at 3 bar pressure. This fixed valve design prevents movement, reducing the risk of damage to both the bowl and valve. The bowl’s innovative tip-over mechanism allows for quick emptying at the push of a button—using gravity to rotate 180 degrees, discharge contents, and return to position automatically. Ideal for fast, hygienic water disposal in livestock environments.

Key Features:

• Fitted with 1/2" brass valve, capable of up to 9L/min at 3 bar pressure (1/2" connection).

• Refills in 20 seconds at 3 bar pressure.

• Maximum 4 bar pressure.

• Multiple mounting points for easy fitting.

• Manufactured from tough and frost resistant polyethylene.

• Double wall for added strength and durability.

• Polyethylene maintains a corrosion free lifetime.

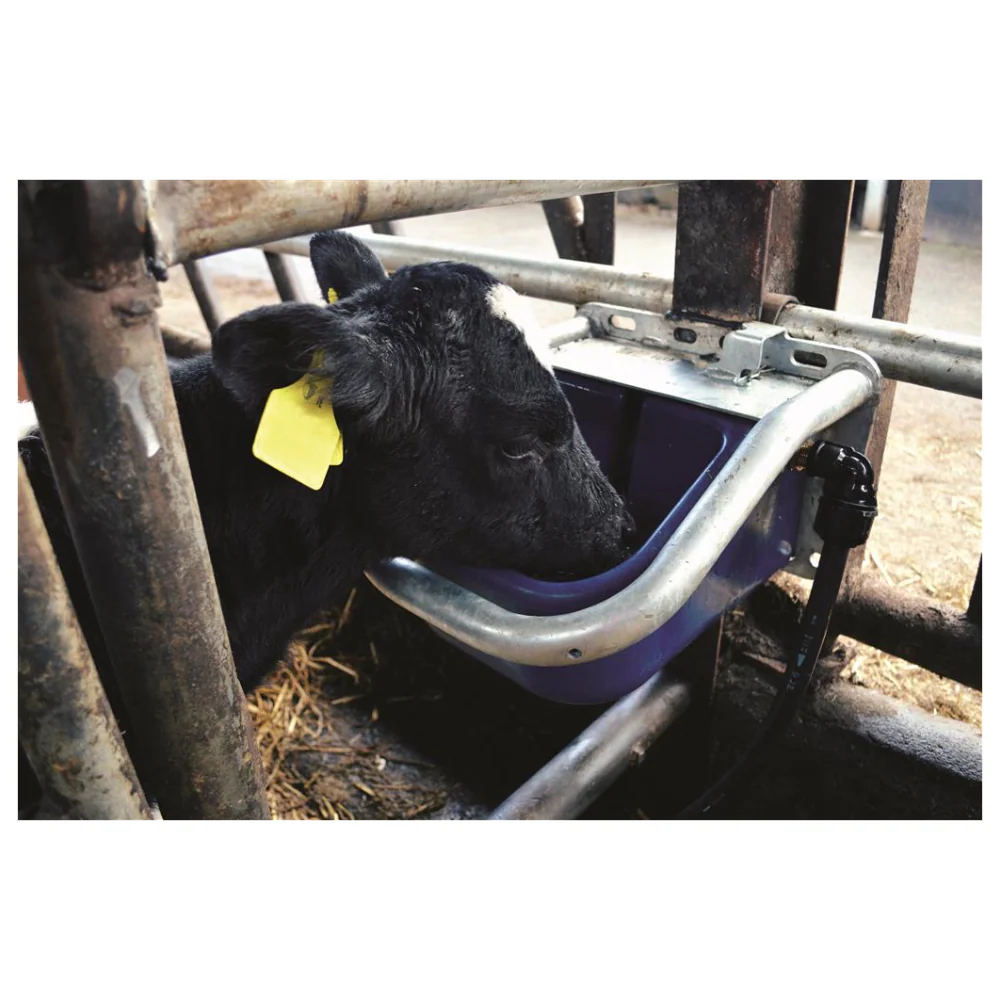

• Provides livestock with fresh, clean and easily accessible drinking water.

• Impact resistant and capable of withstanding aggressive use.

• Suitable for internal and external use.

• Fully adjustable and accessible valve that complies with water safety regulations.

• Smooth finish and curved design aides cleaning and disinfection.

• In built galvanised steel protection bracket.

• Hinged tipping point.

• Time saving.
